Mercedes Benz
NOTICE: This is a listing (and pictures) of heads we've worked on.
    None of these heads are in stock or are for sale.

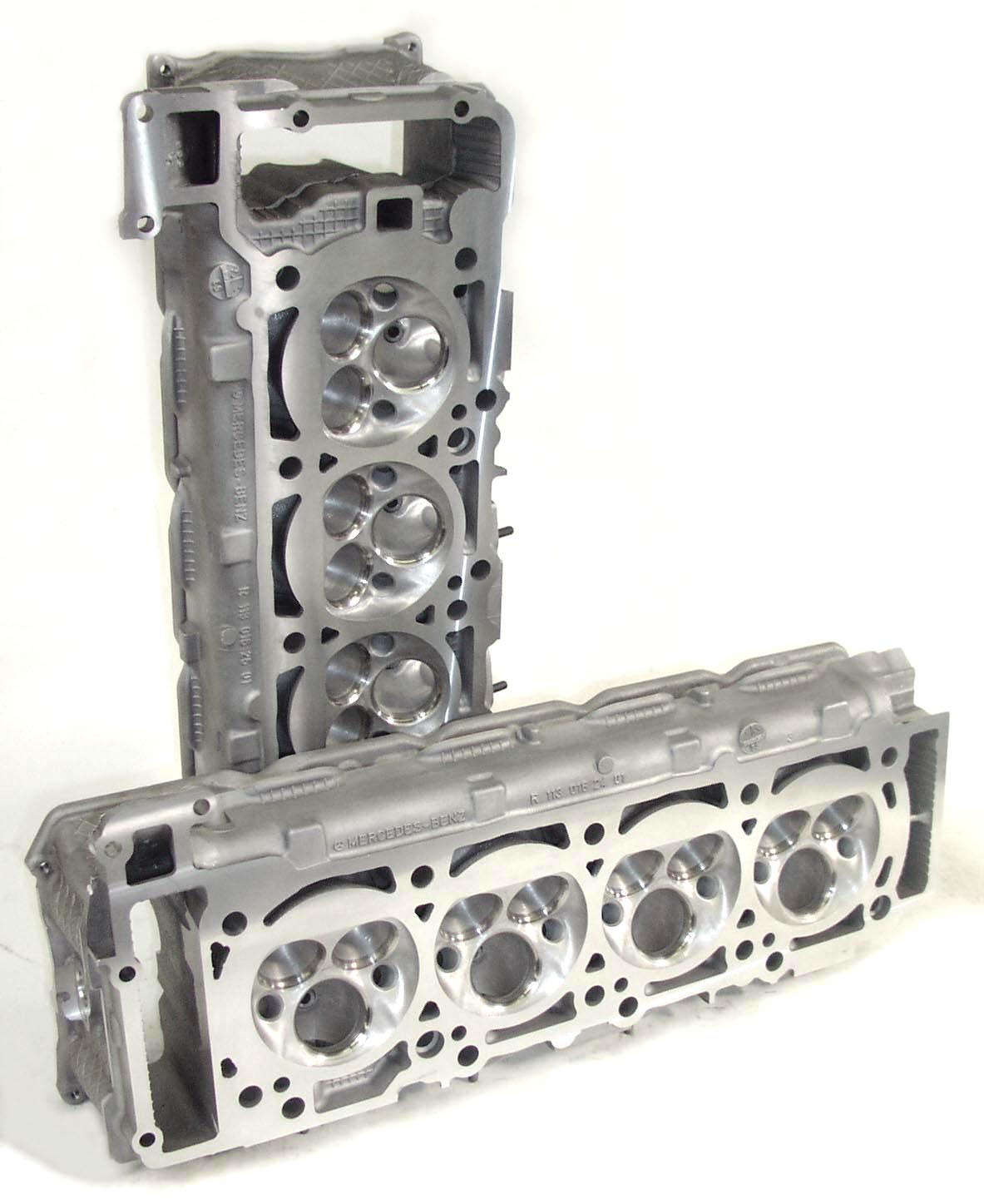

BPE  ported 2005 Mercedes Benz M113 5.0L heads

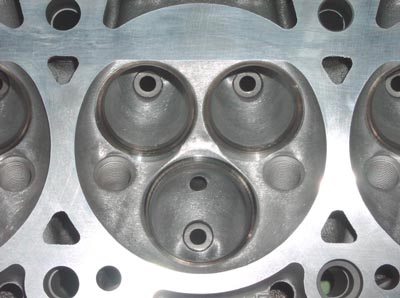

BPE  ported Mercedes Benz M113 5.0L 3 valve chamber

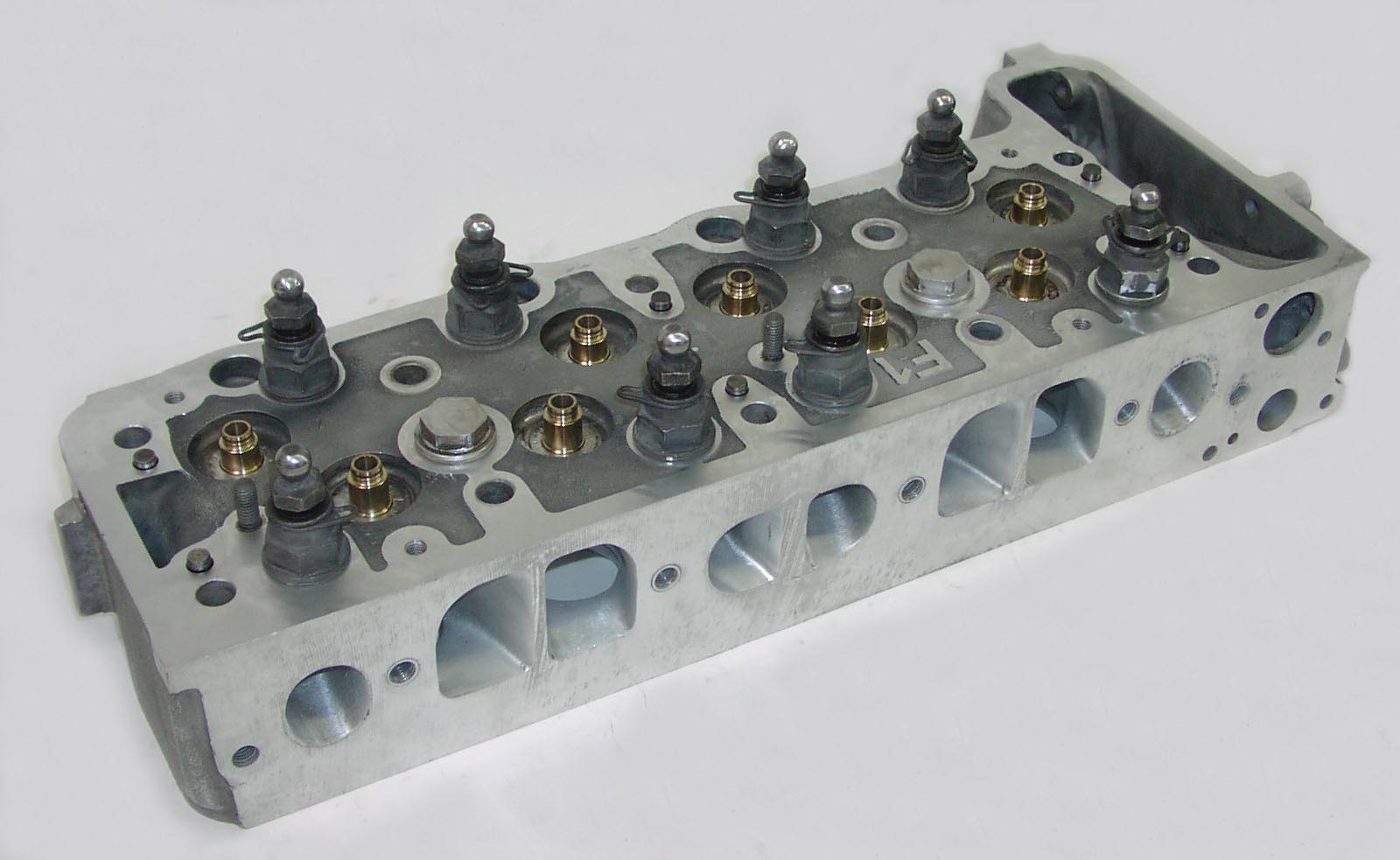

BPE  ported 1973 Mercedes Benz 230 head with welded
up port dividers and custom made "Thin Stem Valve"
valve guides. For more information and pictures about this
head click here
Mercedes 230





Before
Head as received, heavily corroded chambers
After

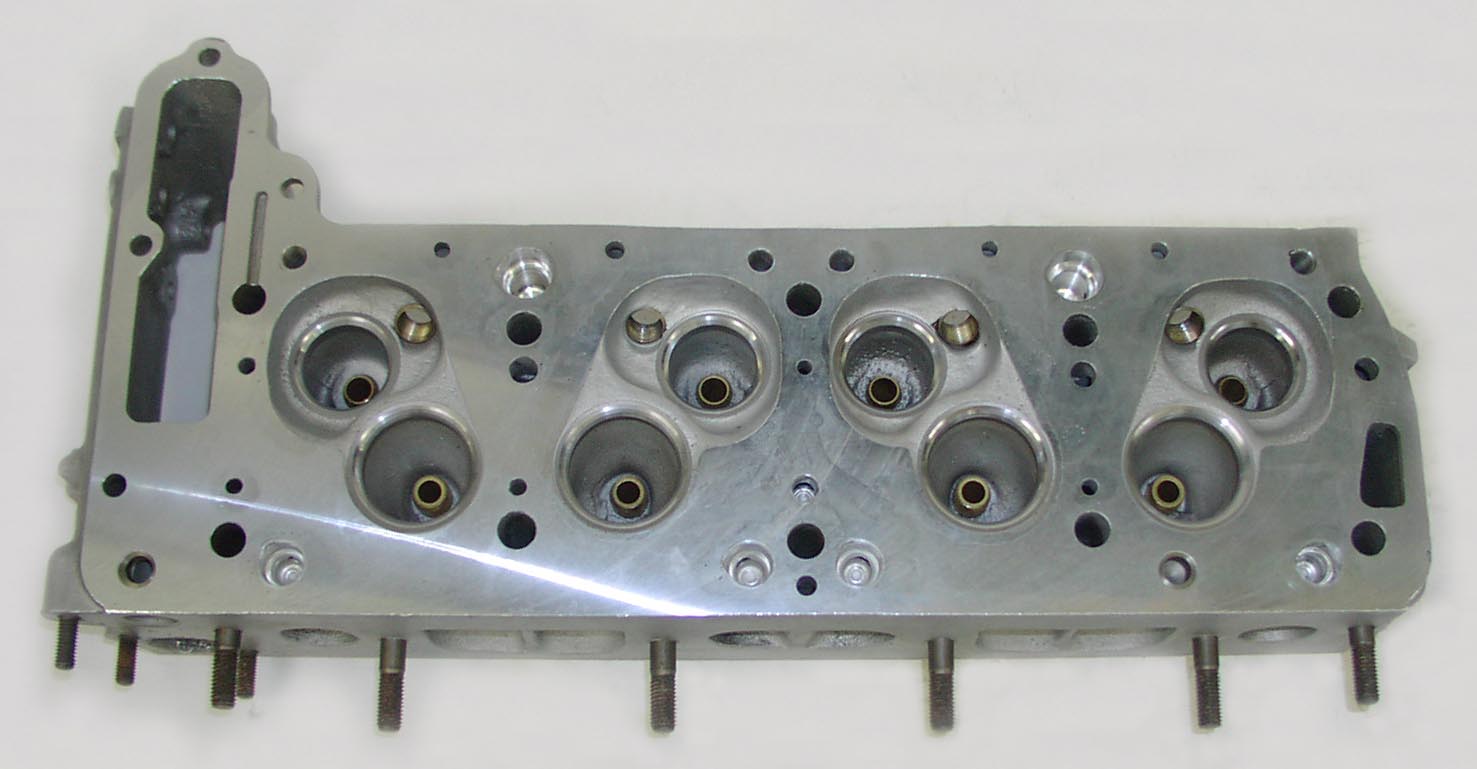

Welded chambers, new guides & seats installed

Badly corroded 1958 Mercedes Benz 190 SL head.
Click here for more details on this repair
Mercedes 190SL






Mercedes Benz 300 SDL head.

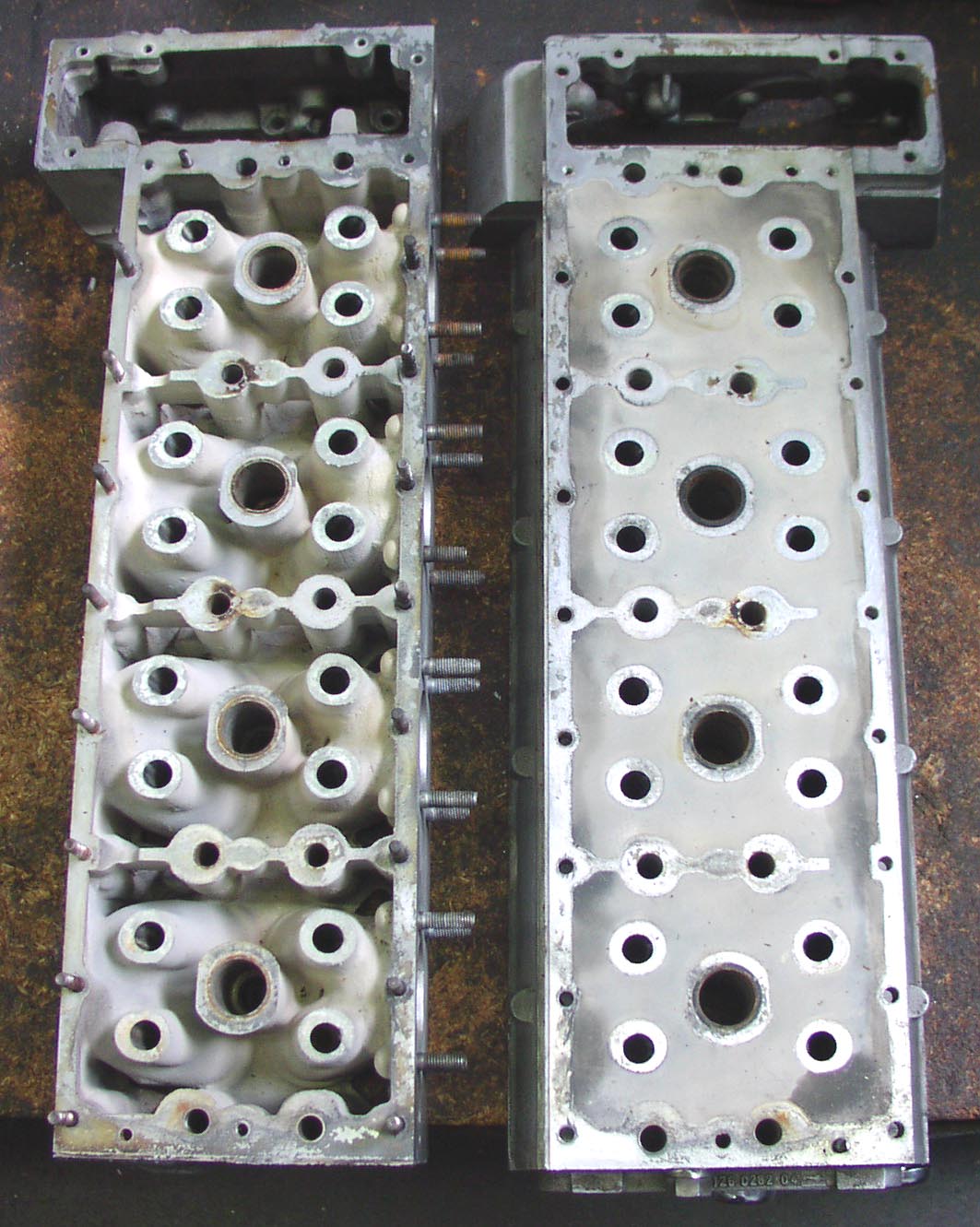

Picture above shows the top and bottom half of a 1988 Mercedes Benz 300E AMG Hammer 6.0L
V8 4 valve cylinder head. The "2 piece" heads split down the middle horizontally. A pair of these
heads came into the shop leaking coolant and after pressure testing it was determined that they
were leaking at the seams between the two halves. Heads were disassembled including removing
the valve guides which was necessary in order to facilitate the separating of the two halves.

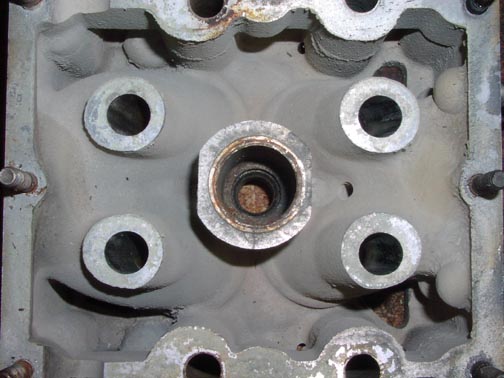

The picture on left is the bottom half of the head showing the top of the ports & chamber of one
cylinder as seen from inside the water jacket. The hole in the center is the bottom half of the
spark plug well and the four holes surrounding it are the valve guide bores. The picture on the

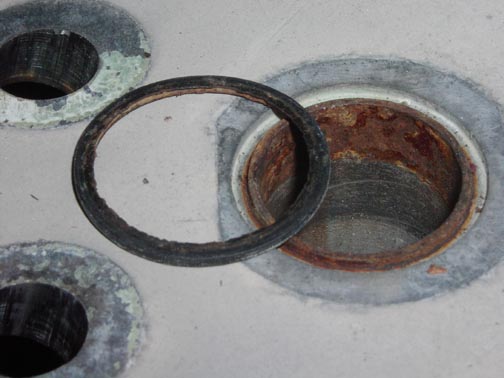

the right is the top half of the head showing one of the old worn out o-rings that seals the spark
plug wells. All The studs and dowel pins were removed, the spark plug wells were bead blasted
and the cylinder head halves were hand lapped and cleaned. For assembly the halves were coated
with sealer, the studs, dowel pins and new o-rings were reinstalled. The heads were bolted to
torque plates in order to help clamp the halves together. Later new valve guides were fitted and
the heads were finished off with a Competition Valve Job and installed on a modified 400HP 6.6L V8

See also Mercedes 230
